This spectrometer benefits from using of a excelent properties of our transducer, which can bear a scintillation detector and/or CEMS detector and simutaneusly the mössbauer absorber = sample. Thus the transmission Mössbauer spectra are acquired by Doppler modulation with absorber while the source is fixed in the radiation shielding. In this configuration simultaneously up to six samples can be investigated simultaneously. Moreover, two different kind of Mössbauer spectra can be acquired simultaneously. That means that there is number of different combination of spectra you can  acquired simultaneously from one sample. The number of acquired spectra is limited by number of electronic acquisition units.

Advantages:

            Ten spectra from one source

            The most efficient Mössbauer spectrometer.

            The cheapest Mössbauer spectrometer per channel

            Huge radiation shielding ensuring extremely safe operation

            Versatility in combination

Here is  a list of possibilities for simultaneous detection of spectra of one sample:

A: Transmission + CEMS

B: Transmission + CXMS

C: CXMS + CEMS

This, Moreover can be combined for each of ten beams.

The radiation intensity is as shown in figure

The configuration can be choosen by costumer.

Here are listed several configurations:

Beam 1 - Transmission

Beam 2 – CXMS+Transmision

Beam 3 – Transmission

Beam 4 – Transmission

Beam 5 – CEMS + Transmission

Beam 6 – Transmission

Beam 7 – Transmission

Beam 8 – Transmission

Beam 9 – CEMS + Transmission

Beam 10 – Transmission

One e-unit operate two detectors, thus for this configuration 4 acquisition units are needed.

Button: quotation

Beam 1 - Transmission

Beam 2 – CXMS+Transmision

Beam 3 – CXMS

Beam 4 – Transmission

Beam 5 – CEMS

Beam 6 – Transmission

Other properties:

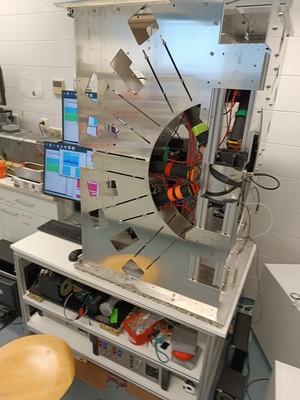

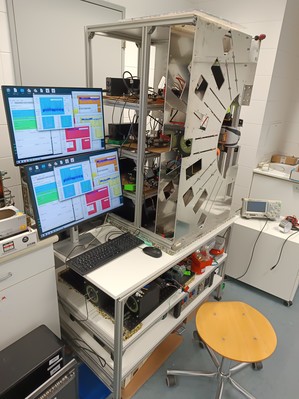

The spectrometer can be operated in horizontal or vertical arrangement, see figures:

The configuration can be easily modified using available equipment.

Beam intensities

Figure

The intensity is

1: 50 %

2: 98 %

3: 100 %

4: 100 %

5: 98 %

6: 50 %

Linewidth

• 30 um alpha-iron (average linewidth) 0.27 mm/s
• 12 um alpha-iron (average linewidth) 0.235 mm/s

Linearity

• Velocity range: ±25 mm/s
• Frequency range: 5–60 Hz (full velocity range 25 +- is not available for all frequencies).
• Velocity profiles: triangular, saw, constant

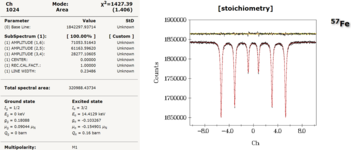

Calibration measured on a 12 μm α-Fe sample.

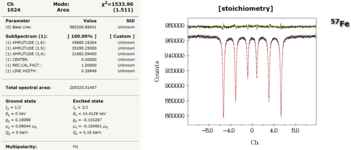

Calibration measured on a 28 μm α-Fe sample (RITVERC).

Here you can download the calibration spectra to check the linewidth and linearity in your own way
