Products

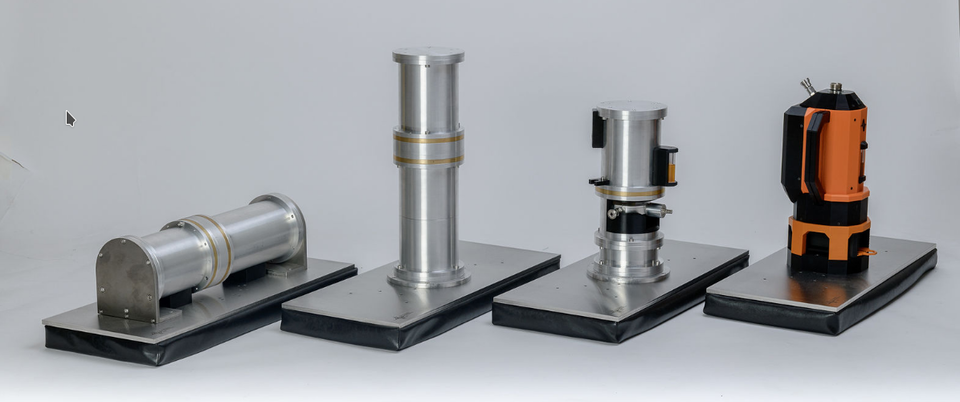

Our Product Portfolio From compact portable units to high-throughput laboratory flagships, OLTWINS provides the right tool for every experimental requirement.
- OLTWINS TenBeam: Our ultimate efficiency solution, featuring up to ten independent measurement channels.
- OLTWINS SixBeam: A robust multi-channel system for demanding laboratory environments.
- OLTWINS Standard: The reliable workhorse for routine academic research.
- OLTWINS Compact: Lightweight and portable, ideal for field measurements or restricted spaces.
- OLTWINS Custom: Bespoke configurations designed for unique cryomagnetic or furnace setups.
- Special Arrangements: Tailored mechanical and electronic integration for specialized research.

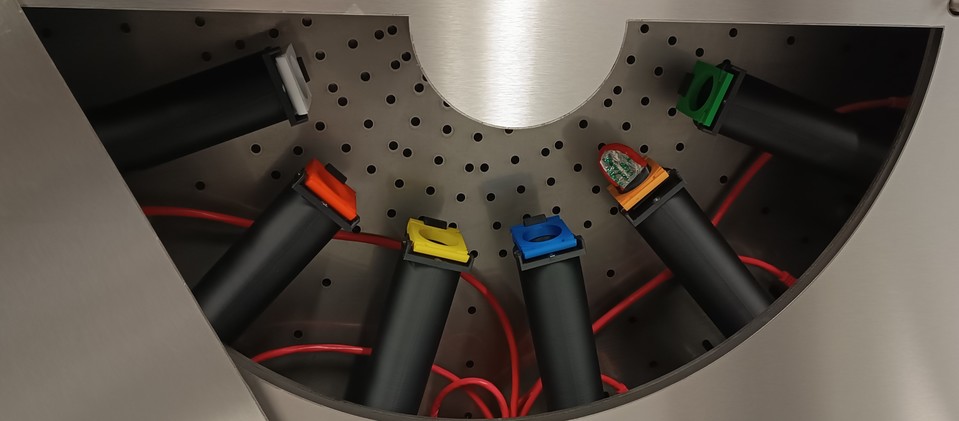

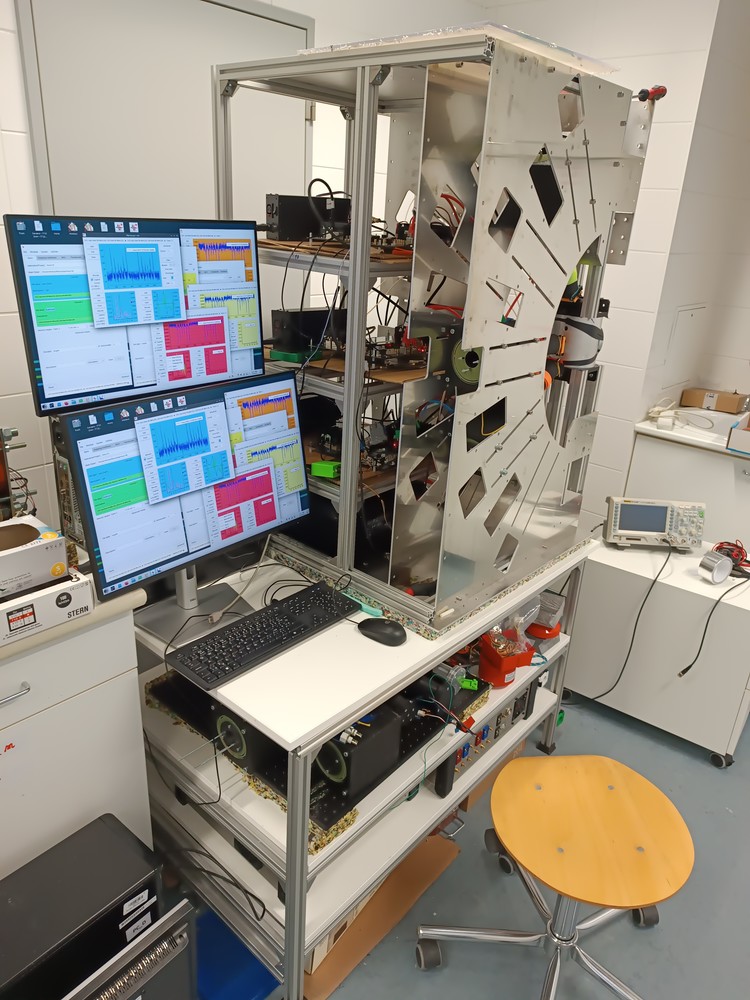

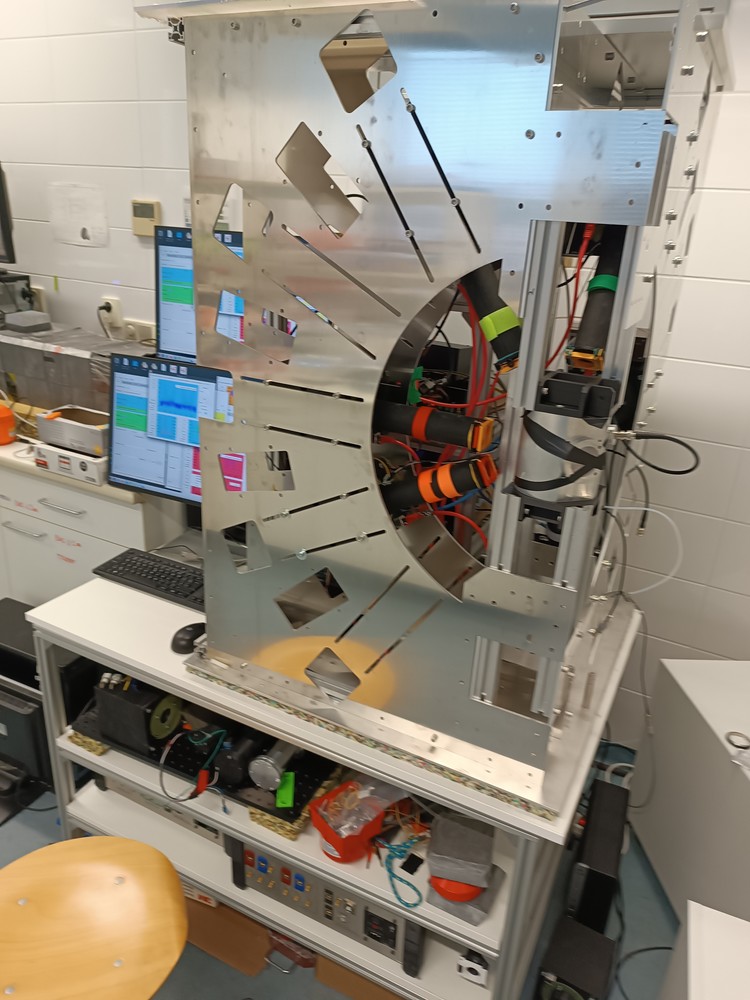

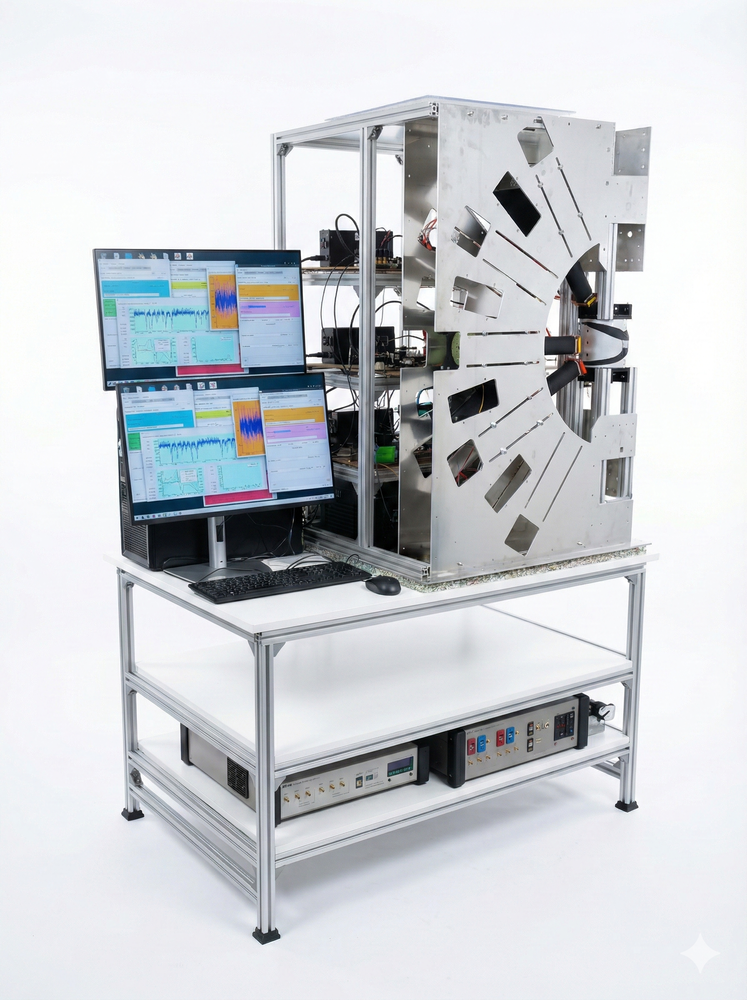

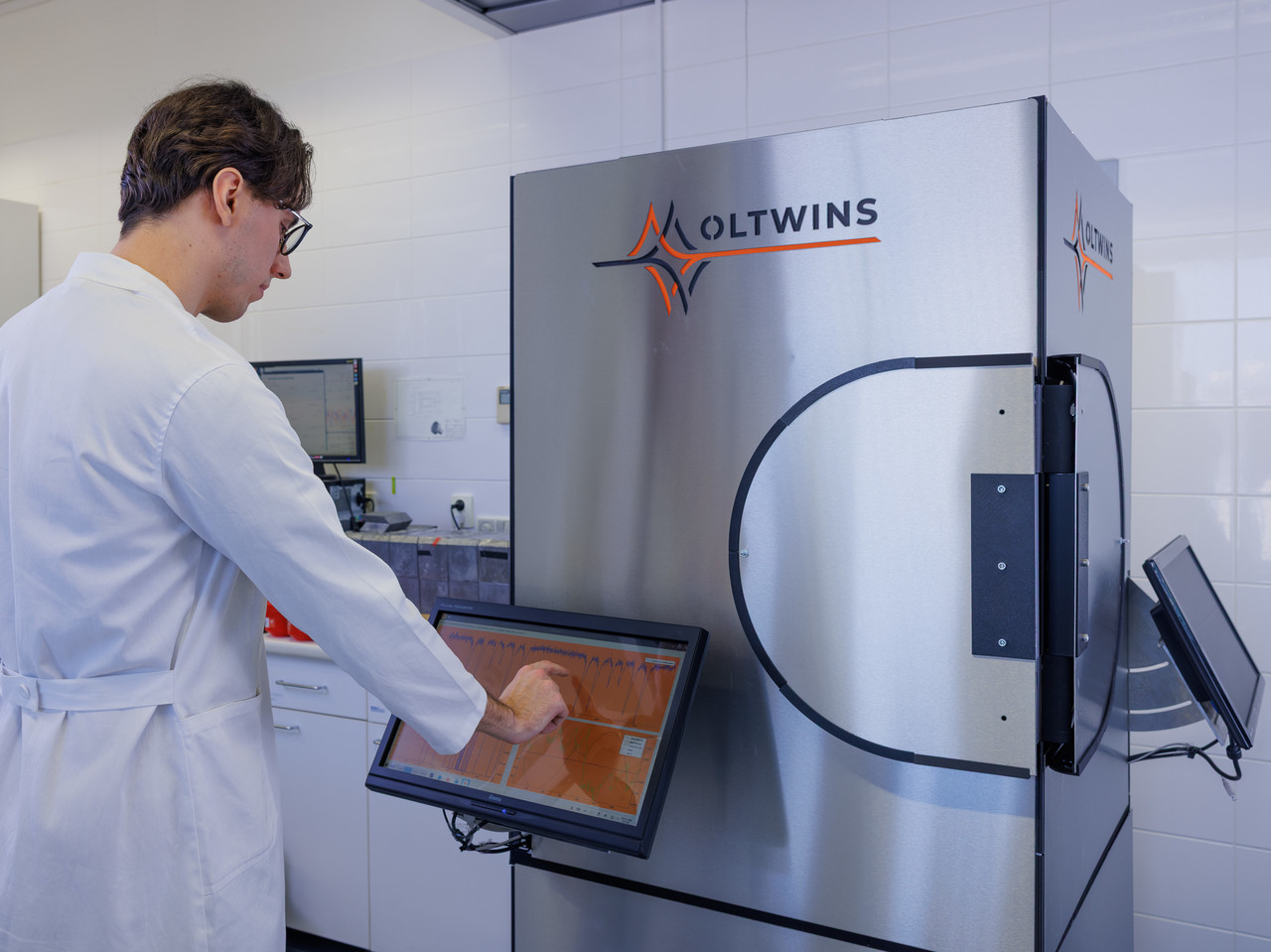

OLTWINS TenBeam
- Tens Mössbauer spectra from one radioactive source
Advantages:
Ten spectra from one source
The most efficient Mössbauer spectrometer.
The cheapest Mössbauer spectrometer per channel
Huge radiation shielding ensuring extremely safe operation
Versatility in combination
- Includes:
- Transmission Mössbauer spectrum
- CEMS
- CEMS + Transmission from the same sample
- CXMS
- CXMS + Transmission from the same sample
Description:

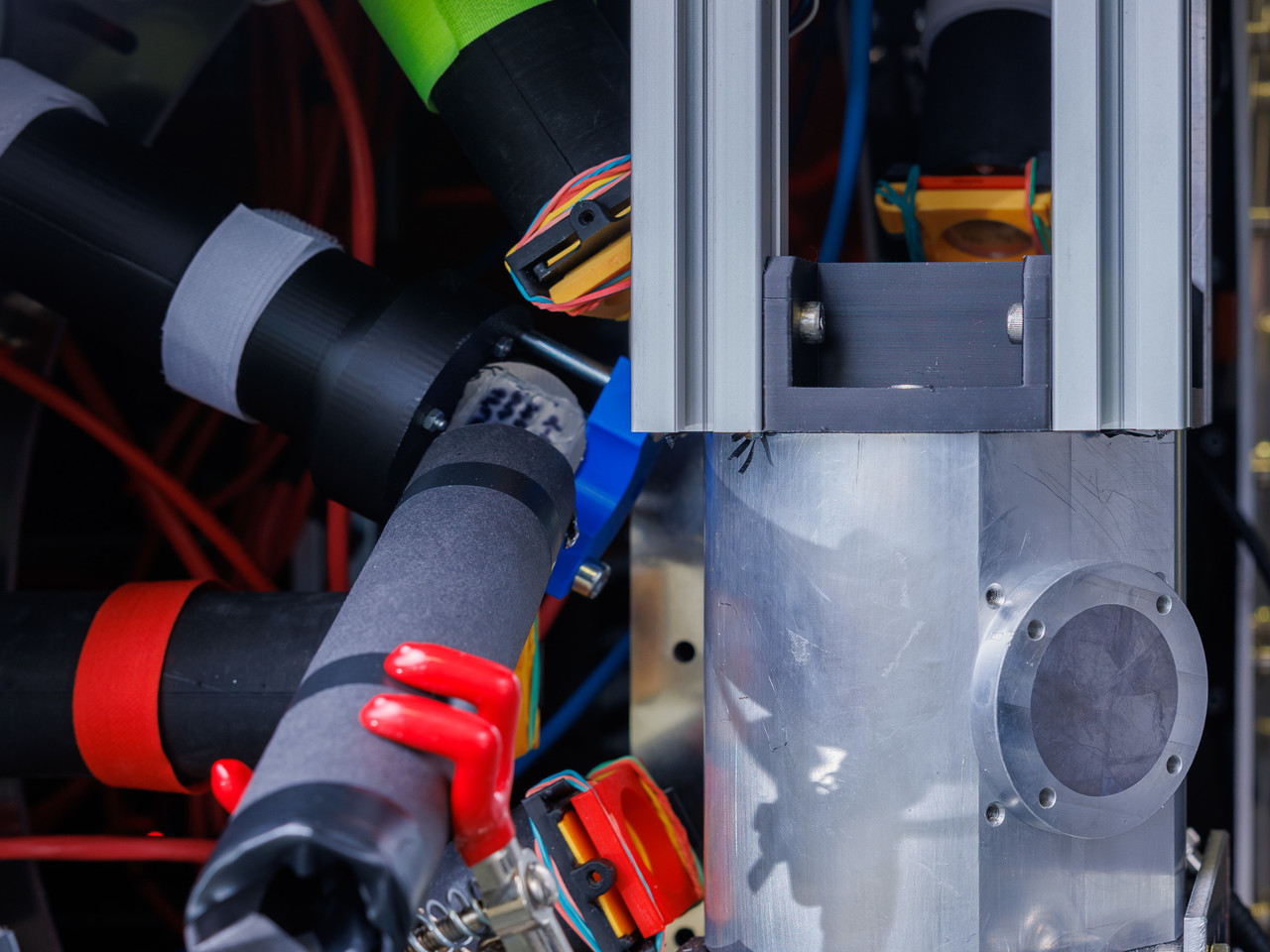

This spectrometer benefits from using of a excelent properties of our transducer, which can bear a scintillation detector and/or CEMS detector and simutaneusly the mössbauer absorber = sample. Thus the transmission Mössbauer spectra are acquired by Doppler modulation with absorber while the source is fixed in the radiation shielding. In this configuration simultaneously up to six samples can be investigated simultaneously. Moreover, two different kind of Mössbauer spectra can be acquired simultaneously. That means that there is number of different combination of spectra you can acquired simultaneously from one sample. The number of acquired spectra is limited by number of electronic acquisition units.
Configuration
Here is a list of possibilities for simultaneous detection of spectra of one sample:
A: Transmission + CEMS
B: Transmission + CXMS
C: CXMS + CEMS
This, Moreover can be combined for each of ten beams.
Properties
The radiation intensity is as shown in figure
The configuration can be choosen by costumer.
Here are listed several configurations:
Beam 1 - Transmission
Beam 2 – CXMS+Transmision
Beam 3 – Transmission
Beam 4 – Transmission
Beam 5 – CEMS + Transmission
Beam 6 – Transmission
Beam 7 – Transmission
Beam 8 – Transmission
Beam 9 – CEMS + Transmission
Beam 10 – Transmission
One e-unit operate two detectors, thus for this configuration 4 acquisition units are needed.
Button: quotation
Beam 1 - Transmission
Beam 2 – CXMS+Transmision
Beam 3 – CXMS
Beam 4 – Transmission
Beam 5 – CEMS
Beam 6 – Transmission
Other properties:

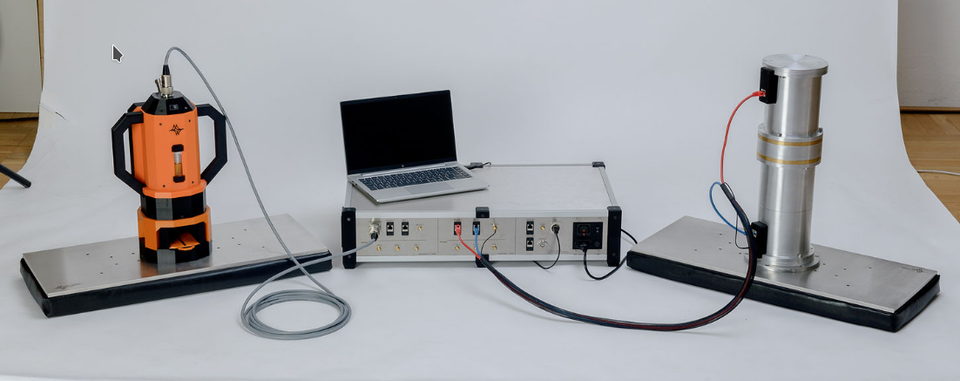

The spectrometer can be operated in horizontal or vertical arrangement, see figures:
The configuration can be easily modified using available equipment.

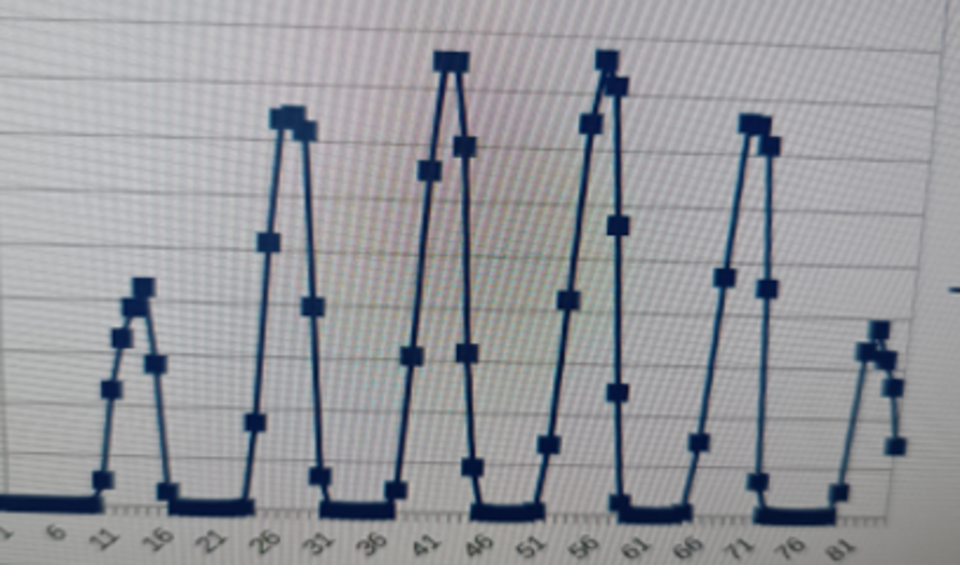

Beam Intenzities
Figure
The intensity is
1: 50 %
2: 98 %
3: 100 %
4: 100 %
5: 98 %
6: 50 %
Basic Parameters
Linewidth
- 30 um alpha-iron (average linewidth) 0.27 mm/s
- 12 um alpha-iron (average linewidth) 0.235 mm/s
Linearity
- Velocity range: ±25 mm/s
- Frequency range: 5–60 Hz (full velocity range 25 +- is not available for all frequencies).
- Velocity profiles: triangular, saw, constant

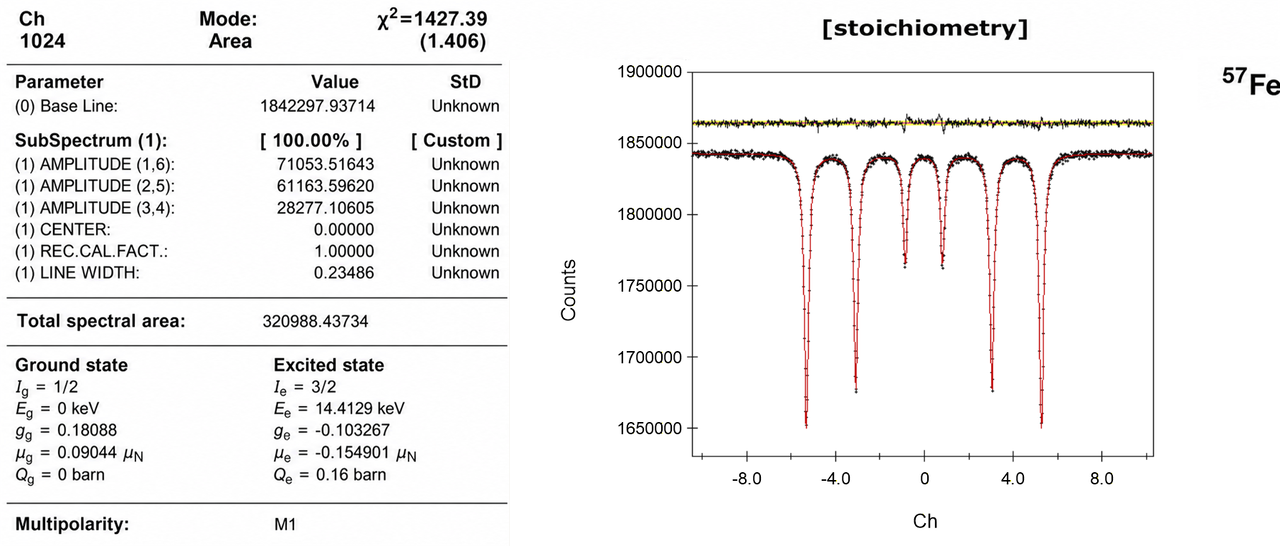

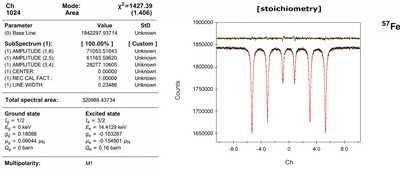

Calibration measured on a 12 μm α-Fe sample.

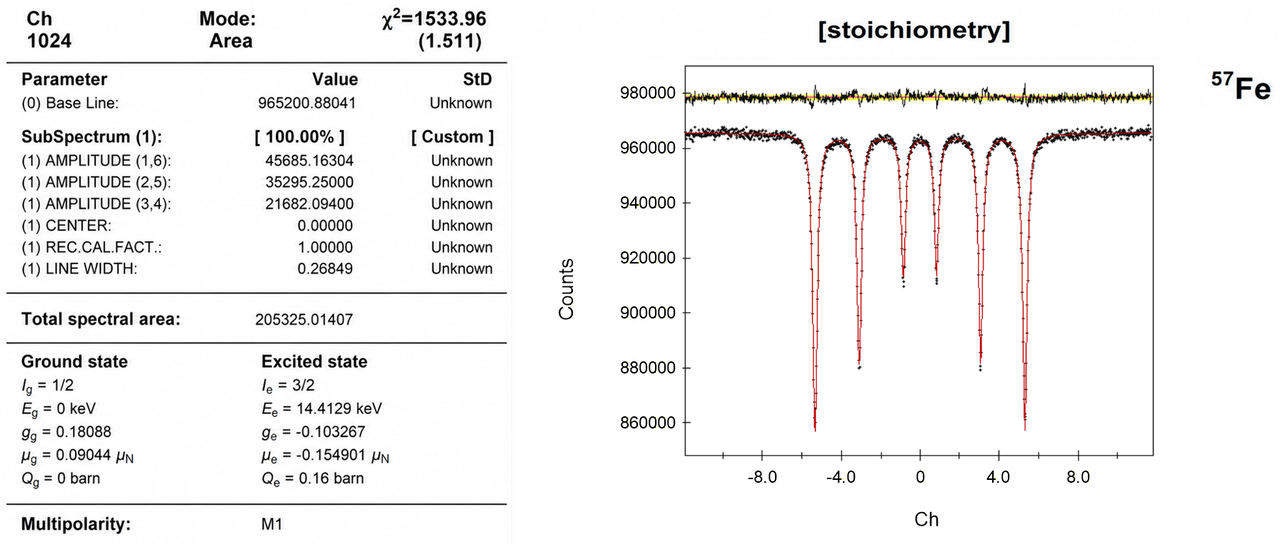

Calibration measured on a 28 μm α-Fe sample (RITVERC).
Calibration spectra for download
Here you can download the calibration spectra to check the linewidth and linearity in your own way

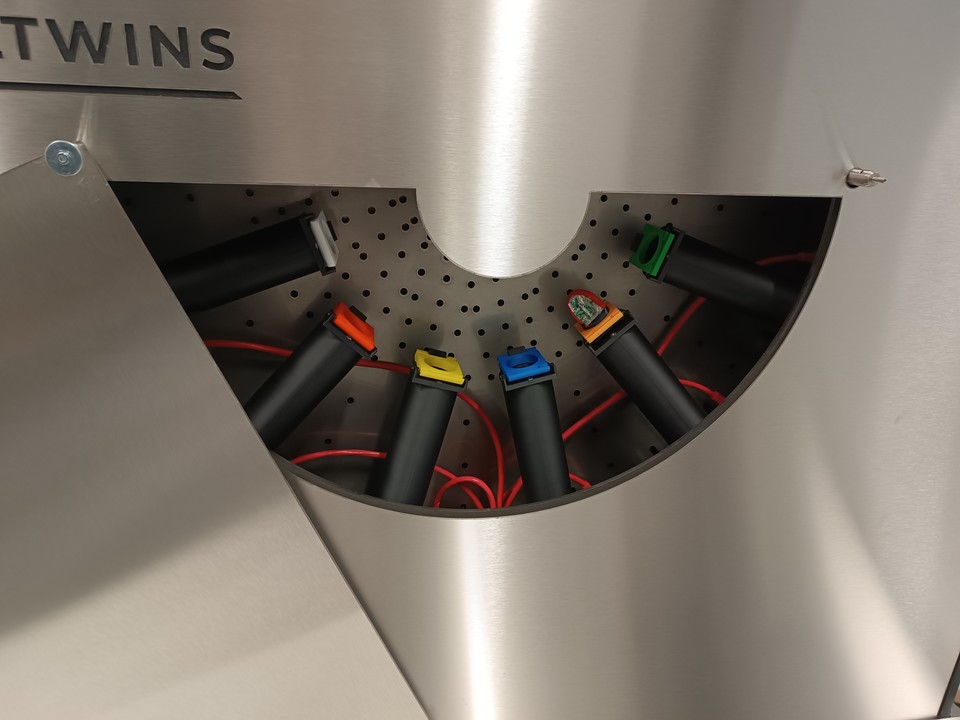

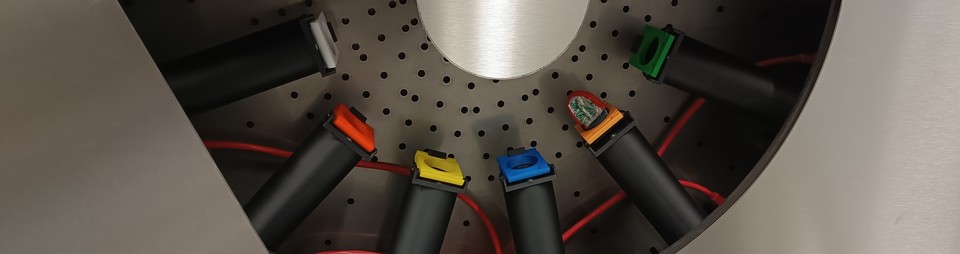

OLTWIN SixBeam
- Six Mössbauer spectra from one radioactive source
Advantages:
Six spectra from one source
Efficient Mössbauer spectrometer.
Huge radiation shielding ensuring extremely safe operation
Versatility in combination
- Includes:
- Transmission Mössbauer spectrum
- CEMS
- CEMS + Transmission from the same sample
- CXMS
- CXMS + Transmission from the same sample
Description:
This spectrometer benefits from using of a excelent properties of our transducer, which can bear a scintillation detector and/or CEMS detector and simutaneusly the mössbauer absorber = sample. Thus the transmission Mössbauer spectra are acquired by Doppler modulation with absorber while the source is fixed in the radiation shielding. In this configuration simultaneously up to six samples can be investigated simultaneously. Moreover, two different kind of Mössbauer spectra can be acquired simultaneously. That means that there is number of different combination of spectra you can acquired simultaneously from one sample. The number of acquired spectra is limited by number of electronic acquisition units.

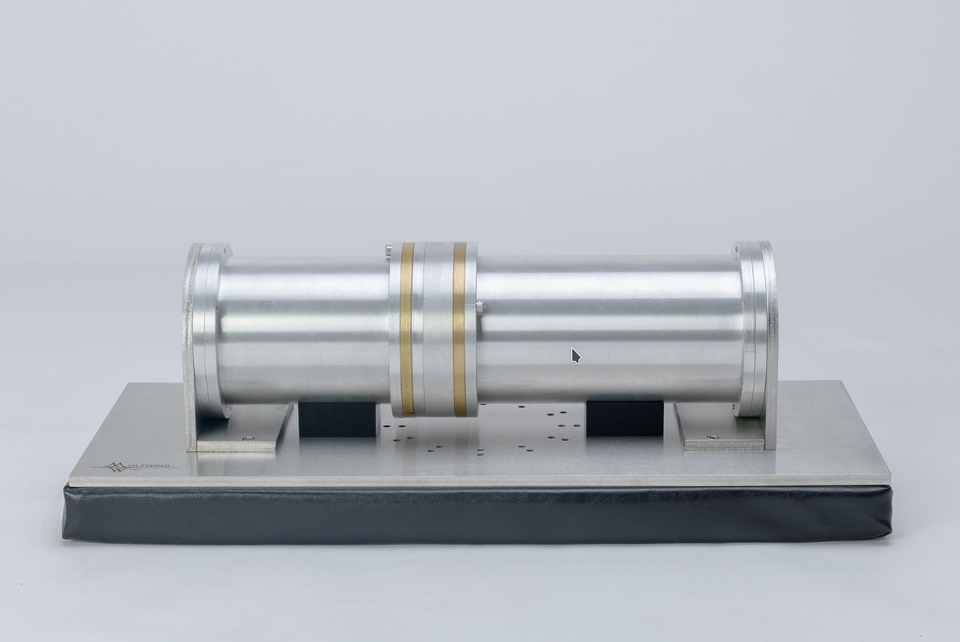

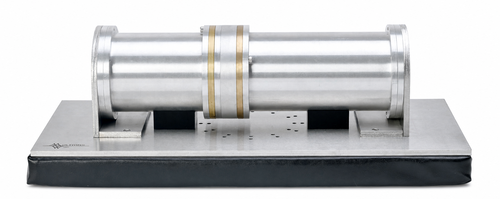

OLTWINS Compact
This is a compact single beam/channel spectrometer. It contains basic shielding of the source.
This spectrometer can be operated in horizontal as welll as in vertical arrangement. It is mainly dedicated to such application where is due to some reasons limited space like for cryostats, high temperature furnace etc.
OLTWINS Standard
This is a highly shielded version of Mössbauer spectrometer which can be operated in vertical and horizontal direction.
OLTWINS Custom
Customs development “arrangement” CEMS detector CEMS detector
We are offering possibility for custom development of the Mössbauer spectrometers for the purpose.
OLTWINS Special arrangement
The spectrometer acquisition units can performed different possibilities of different
That are time coincident measurements, time anticoincident measurements and acquisition time time differential Mössbauer spectroscopy.
Thus If the setup is equiped by Detector of 122 keV the setup allow to measure the excitation state life time.
Time Differential Mössbauer spectroscopy or anticoincident measurements (that can be used for specific filtration of the detected photons. In specific situation it allows to increase signal to noise ratio.
Posible arrangements
Thanks to its modularity, apart form double spectrometer arrangement, the system OLTWINS can be utilized in various experimental setups/arrangement.
Emission Mössbauer spectroscopy
In the emission spectroscopy setup we investigate a sample with incorporated 57Co serving as a source of radiation. The spectrum of the sample is detected using known reference absorber with single line (usually K2Mg57Fe(CN)6). The setup is similar to that of double spectrometer. This setup allows placing the studied sample to the cryostat or furnace, so we can follow the emission spectra under different conditions.
Also in this case we can also measure two spectra of the same sample simultaneously, thus the time needed for relevant statistics decreases.
Gamma back scattering
The source and detector can be placed also into the backscattering geometry.
